∅10- 90mm Tiny Tube Laser Cutting Machine V9MAX

Golden Laser V9MAX is a tiny tube laser cutting machine equipped with a fully automatic and efficient loading system. It is designed for tubes with a small diameter of 10 mm to 90 mm. Small tube laser cutter V9MAX preferred processing tool for the manufacturing of teaching aids and school equipment, metal fences, and metal furniture.

Highlights

High Efficiency: 1.5G acceleration + 150r/min chuck speed for rapid response
Drawing-Free Functionality: Nesting menu modeling enables standard/complex tube processing
Multi-Function: One-touch severing, Auto-Centering/End-Face Alignment
Auto-Loading: Full-process automation from loading to cutting
Compact Design: High integration optimizes space utilization
Precision Welding: 45° bevel cutting ensures seamless jointing
Smart Unloading: Chuck retraction design achieves ultra-shortail cutting, 98% material utilization rate

Download Data-sheet

Request A Quote

An overview of the benefits you gain from our laser tube cutting machines.

We offer you the ideal solutions for the world of laser tube cutting. Find out here how lasers can eliminate entire process steps while also increasing the range of parts you can produce.

Find Out More

Automatic loading for Small Tube

Suitable for batch processing of round, square, rectangular, and oval tubes, etc.
Adopt innovative floating roller dynamic support with real-time tube morphology sensing, enabling adaptive support for non-circular tubes (e.g., square/rectangular). Eliminates long-tube sway during cutting while ensuring stable, high-precision tube processing.

Achieving continuous laser pipe cutting

achieving over 40% higher productivity compared to traditional methods.
V9MAX pipe laser cutting system eliminates the need for reset movements with its return-free design. Unlike conventional systems requiring a 6-meter return stroke, its rear chuck instantly switches processing modes. The integrated dual-station collaborative control system optimization enables seamless transitions between pipe clamping and positioning.

Efficient laser cutting, maximum utilization

The waste of tailings is greatly reduced to a minimum of 100mm, maximizing cutting efficiency and material utilization.
Realize the automation and continuity of the entire process of pipe processing, improve efficiency and reduce costs

Precision pneumatic chuck

Small tube laser cutter V9MAX with High sealing performance, strong clampinh force, Wear-resistant and durable.
Square Hole Chuck Larger Clamping Range
Full stroke faster tubing clamping
Capable of clamping any tube shape, wider processing range

3D bevel laser cutting

Small tube laser cutter V9MAX with High sealing performance, strong clampinh force, Wear-resistant and durable.
Square Hole Chuck Larger Clamping Range
Full stroke faster tubing clamping
Capable of clamping any tube shape, wider processing range

No drawing required, fast production

The nesting software has a drawing-free function. Conventional tube cutting 3D drawings can be easily modeled through the nesting menu. Complex V-shaped and D-shaped V-grooves can be generated with one click. It is seamlessly connected with the cutting software and easy to operate.
No welding required.

Increase your productivity with our Intelligent Laser Tube Cutting.

Contact Us Now

Laser Machine Application

stainless steel
carbon steel
aluminum
brass
copper
alloy steel
galvanized steel,
etc.

metal furniture
metal Guardrails, Doors, and Windows
metal fence and Escalator
outdoor equipment
bike rack
baby stroller

View Compact Laser Pipe Cutting Machine

Especially Design for Small and Middle Diameter Metal Tube and Light Pipes Laser Cutting

Laser Tube Cutting Machine Parameters

Models	V9MAX
Processing pipe size range	round tube：Ø10mm-90mm square tube：10mm10mm-90mm90mm
Laser power	1500W- 3000W
Max acceleration	1.5g
Repeat positioning accuracy	0.03mm
Max rotate speed	150r/min
Loading Machine Load Capacity	1.0T
Application	Metal fence, metal furniture, scaffolding, fitness equipment, pipe fence, automotive parts, trolley
Automatic feeding pipe requirements	round tube：Ø10mm-90mm square tube：10mm10mm-63mm63mm Tube length: 5700mm-6200mm
Laser source	MAX fiber laser

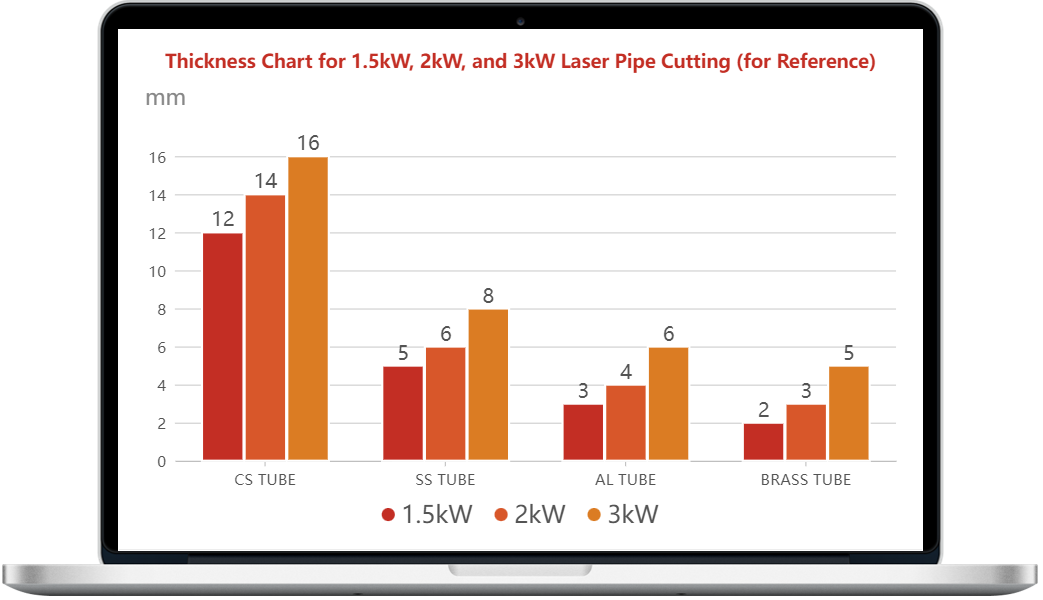

Laser Tube Cutting Machine Capability

*The actual thickness of steel processed by the pipe cutting machine depends on the actual configuration.
