Huge “H” Series


Huge Laser Cutting Machine in Gantry Type H16 H24

H16 ultra-large-format fiber laser cutting machine is specially designed for ultra-high power and ultra-large-format processing requirements. Overturned traditional sheet metal cutting equipment boundaries and opened up a new processing mode in heavy and large-scale manufacturing fields such as shipbuilding and building steel structures.


Highlights

  • Segmented modular workbench, free customization of size, up to 40 meters in length,
  • Optional laser power from 6000W to 60kW
  • Achieve long-term batch stable cutting of medium-thick sheet metal of more than 20mm, and the maximum laser cutting ability is 70mm
  • Modular design, up to 40 meters in length, easy maintenance and disassembly; One 40HQ container is enough, saving your cost
  • Optional 3D swivel laser cutting head to achieve ±45° bevel cutting
  • Intelligent cleaning laser cutting, efficient partition dust removal, and environmentally friendly
  • Configure safety light curtain system for safety protection

Request A Quote

Need Laser Service?

We’d love to hear from you and help you reach your business goals. Please fill out the form below to send us a message or talk to your laser experts directly over the phone.

COME VISIT US.

Magnesiumstraat 19 – 6031 RV Nederweert, Eindhoven, Netherlands.

goldenlasereurope@gmail.com

+31 40 20 92 448

An overview of the benefits you gain from our fiber laser cutting machines.

We offer you the ideal solutions for the world of metal laser cutting. Find out here how lasers can eliminate entire process steps while also increasing the range of parts you can produce.

Break through limitations and increase processing capabilities

  • The ultra-large format from 16000mm×2500mm to 24000mmX3500mm greatly expands the application field of fiber laser cutting machines.
  • Fiber laser sheet cutting machine H16 H24 can customize the length and width to suit the processing of oversied and ultra-thick plates.
  • Thanks to the separate design of the workbench and the machine bed, the heat during production does not affect the machine bed, achieving high speed and high precision.

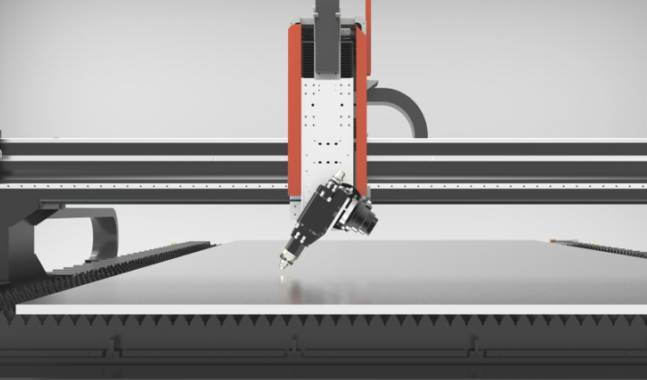

3D laser cutting (optional)

Precisely execute various beveling processes such as X-type, Y-type, V-type, K-type, A-type, etc., making the plate welding process more efficient and stable, and the quality of the weld seam is significantly improved.

3D-laser-head

Continuous laser cutting to improve processing efficiency

When one sheet is cut and another sheet is processed, the finished sheet can be unloaded and loaded immediately without interrupting the cutting process. This reduces equipment downtime and improves the overall processing efficiency of the fiber laser cutting machine.

Environmentally friendly, laser cutting without smoke or disturbance

  • Blowing and exhausting combination, more effective dust removal
  • Partitioned dust extraction, faster dust removal

Safety in production comes first, Ergonomic

  • Advanced safety grating system is installed at the front and rear of the beam.
  • Enclosed protection of laser cutting area, eliminate radiation and hazards
  • Safety observation window, real-time observation of processing process
  • Independent operation table, flexible operation space, effectively avoiding operation interference, improving the safety and smoothness of overall cutting processing

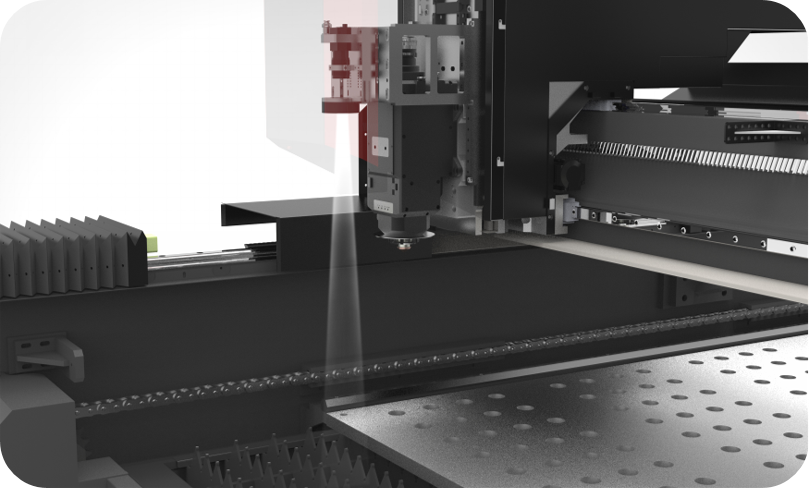

Advanced visual positioning technology (optional)

Realizing the full-automatic, high-precision rapid positioning and cutting of workpieces or molded parts with clear positioning features. This function abandons the traditional manual positioning method, greatly improves production efficiency, and realizes the intelligence and automation of the process from identification to cutting.

intelligent-laser-cutting

Segmented modular workbench

  • Convenient disassembly and replacement without hindering production
  • Modular blade assembly makes slag removal more convenient and labor-saving.
  • One 40HQ container for the whole cnc fiber laser machine is enough


More durable workbenches, less maintenance costs

  • The bottom of each independent workbench of the H16 H24 fiber laser cutting machine is laid with high-performance refractory bricks. Cope with the extreme high temperature challenges brought by ultra-high-power laser cutting.
  • Significantly extend the service life of the workbench, and also greatly reduce the customer’s maintenance and use costs.


Increase your productivity with our Huge “H” Series fiber cutting laser machine.

View Gantry Type Laser Cutting Machine

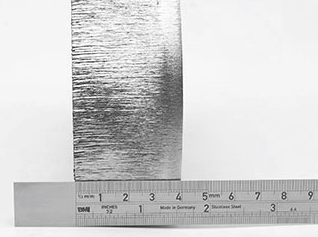

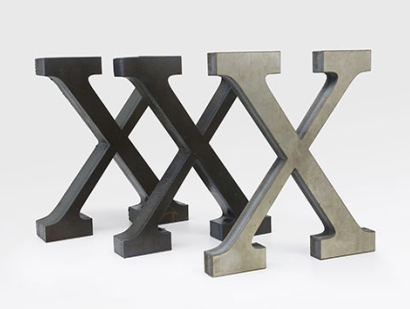

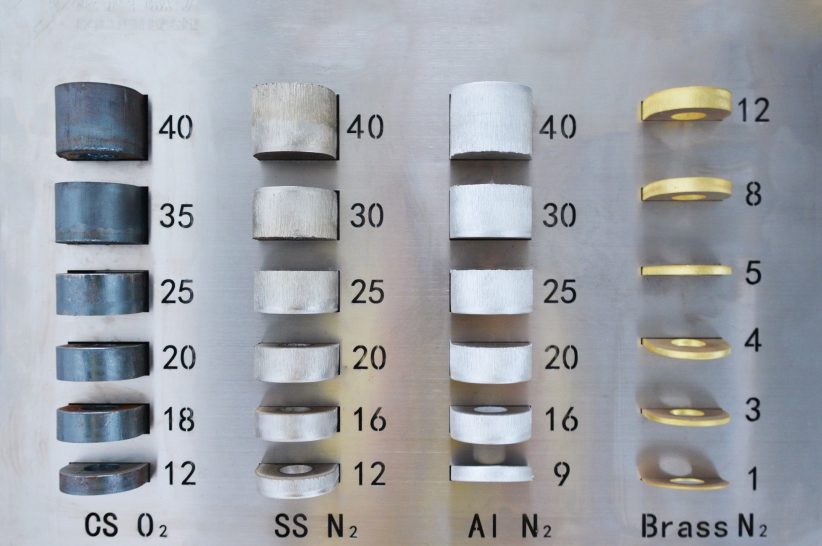

Especially Design for Thick and Large Format Sheet Metal

Industries & Applications

Fit for fiber laser cutting machine above 6000W. Widely used in metal sheet fabricating factory, automation line and large fabrication station.

high-power-laser-cutting-machine
laser-cut-for-plate
thick-plate-laser-cutting
  Models
H16 H24
Working Area

L16000mm*W2500mm

L24000mm*W2500mm

L16000mm*W3500mm

L24000mm*W3500mm


Support customization

Laser power

6kW to 60kW

X Y axis max idle speed

80m/min

X Y axis max acceleration speed

0.8G

Position accuracy

0.1mm/10m

Maximum load

6kW-12kW 17T

20kW-30kW 22T

40kW-60kW 26T

Fiber Laser Source

IPG/ MAX/ Raycus

Laser  head

Boci/ Precitec/ Raytools

Exchange tables

Large format workbenches

Why Choose Fiber Laser Cutting Machine?

Need Laser Service?

We’d love to hear from you and help you reach your business goals. Please fill out the form below to send us a message or talk to your laser experts directly over the phone.

COME VISIT US.

Magnesiumstraat 19, 6031 RV Nederweert, Netherlands.

goldenlasereurope@gmail.com

+31 40 20 92 448

Fiber laser cutting is the only choice to replace traditional processing methods

Plasma Cutting
  • Carbon steel cutting thickness: 0.5-45mm
  • Cutting speed: 50-6000mm/min
  • Cutting accuracy: 0.5mm
  • Cutting gap: 0.5-4mm
  • Cutting verticality: 1°-3°
  • Heat impact: General
  • Processing efficiency: Low
  • Environmental pollution: High

Fiber Laser Cutting
  • Carbon steel cutting thickness:

0.5-80mm

  • Cutting speed: 120-28000mm/min
  • Cutting accuracy: 0.2mm
  • Cutting gap: 0.15-1.5mm
  • Cutting verticality: less than 1°
  • Heat impact: small
  • Processing efficiency: high
  • Environmental pollution: very low

Flame Cutting
  • Carbon steel cutting thickness:

6-150mm

  • Cutting speed: 50-750mm/min
  • Cutting accuracy: 1mm
  • Cutting gap: 2-6mm
  • Cutting verticality: less than 1°
  • Heat impact: large
  • Processing efficiency: extremely low
  • Environmental pollution: high
