MEGA Series

3 Chucks Heavy Laser Tube Cutting Machine Mega3-3D

Mega3-3D heavy-duty tube laser cutting machine, specially designed to laser cut extremely large, heavy, and long pipes. Equipped with an advanced three-chuck, 3d swivel laser head, demonstrating exceptional pipe handling capabilities. Capable of effortlessly managing ultra-heavy pipes with a single weight exceeding 1.2 tons and a diameter of over 350mm.

Highlights

Side-mounted structure of the chuck: enables barrier-free connection with the heavy tube loader and unloader.
Optional 3-chuck or 4-chuck: two models meet different needs for heavy tube cutting requirements.
Automated production: chain loading and unloading mechanism saves manpower and improves efficiency.
Flexible configuration: modular segmented bed design structure, more flexible customization capabilities.

Download Data-sheet

Request A Quote

An overview of the benefits you gain from our cnc pipe laser cutting machine.

We offer you the ideal solutions for the world of laser tube cutting. Find out here how lasers can eliminate entire process steps while also increasing the range of parts you can produce.

Find Out More

Comprehensive Safety Protection

Golden Laser has set up an independent safety space for the laser machine operation area.
Safety light curtains are added to the loading and unloading area to form a flexible and safe fully enclosed space.
Fully meets the space requirements for loading and unloading but also ensures the safety of personnel during the laser cutting process.

Three Chucks for Flexible Cutting

Zero railing laser cutting
Side-mounted structure, automatic loading and unloading, smooth and more stable
Reverse laser cutting enables the Mega3-3D laser cutting machine to perfectly complete double Y-shaped grooves and double bevel cutting, meeting the needs of pipeline welding applications.
The whole tube cutting is more stable
Two-chuck cutting mode, Three-chuck cutting mode

3D Laser Cutting

Tube laser Mega 3-3D is equipped with a swivel laser head and an advanced PA CNC system, making it easy to handle heavy pipes and complex bevels.
It is easier to splice and enhances the strength and sealing of the welded joints, significantly improving the overall quality and reliability of the product.

Automatic Loading and Unloading

The first step in automation heavy pipe processing.
Automatic Loading System:

support multiple pipe loading
compatible with both short and long pieces
suit for round, rectangular, square, I-beams, channel steel, etc.

Automatic Unloading System:

compatible with various lengths
centralized storage

Professional Tubing Cutting and Nesting Software: Lantek

Adapt to any type of tube cutting
Supports common-edge nesting and cutting with bevel angles, saving material.
Design efficiency is far greater than 3D design software.
Three-blade cutting with common-edge and bevel angle, facilitating welding and reducing manual post-processing steps.
Supports SAT, DSTV, IGES, STEP, SolidWorks, Catia, and others.
Fully Automatic Nesting Module
Automatic Island-Shared Edge
Segmented Processing

Durable Tube Support Capabilities

The laser tube cutting machine supports the process that can be automatically adjusted quickly according to the program.
Dual support for higher precision and faster cutting.
No worries about cutting small and long tubes with a laser.

Flexible Workpiece Collection

The finished product falls smoothly onto the floating flap, effectively avoiding damage to the pipe
Short workpieces: Independent and fast retraction
Long workpieces: Automatic unloading and collection, making it easy to use forklifts and other handling equipment to proceed to the next step.

Save Space Easy to Transport

Segmented modular bed for easy installation and lower transportation costs.

Increase your productivity with our MEGA Series Laser Tube Cutting.

Contact Us Now

View Heavy-duty Tube Laser Cutting Machine

Specially Designed for Structural Material.

Highlights from the video

Ultra-long pipe carrying capacity

12m tube loading and unloading, suitable for processing extra-long and extra-heavy pipes.

3 Heavy-duty pneumatic chucks

The chuck side-hung structure is more suitable for working with an auto feeder to transport raw materials. The segmented machine bed facilitates on-site assembly by customers.

3D laser cutting or 2D laser cut mode

You can choose from the German LT ULtra 3D laser cutting head or Golden Laser brand, also 2D laser cutting head is optional.

Extend large tube capability

Supports the selection of larger chucks, up to ∅450mm, to meet your needs for ultra-large diameter laser cutting.

See All Videos

Laser Tube Machine Applications

stainless steel
carbon steel
aluminum
brass
copper
alloy steel
galvanized steel

oil exploration
bridge supporting
steel rail rack
steel structure
fire control
metal racks
agriculture machinery
pipes processing

round tube
square tube
rectangular tube
oval tube
OB-type tube
C-type tube
D-type tube
triangle tube
angle steel
channel steel
H-shape steel
L-shape steel

CHECK OUT THE LATEST

Industries & Applications

We have you covered whether for structure material, auto parts, medical equipment, hardware, outdoor appliances, stainless steel tubes, carbon tubes, or aluminum tubes.

Find Out More

Talk with Us

Models	Mega3 / Mega3-3D
Processing pipe size range	round tube φ20-φ350mm square tube φ20-φ250 U profile 20# I profile 20#
Tube load bearing	100kg/m, Max.Length 12m
Laser power	3000W- 12000W
Max. acceleration speed	0.8g
Positioning accuracy	0.05mm
Bundle size	5 pcs at one time / 3T
Fiber laser cutting head	RAYTOOLS/ BOCI/ LT Ultra Germany/ PRECITEC	Mega3-3D optional 3D swivel laser head, ±45° bevel cutting
Max. auto loader per tube	1200KG
Max. rotation speed	75r/min

Need to Customize Your Featured Laser Machines?

Consult Experts

Smart functions of fiber laser cutting machine to improve your productivity.

Swivel Laser Head

Germany LT ULTRA or Golden Laser Brand

Dust Removal

The inner wall of the pipe is clean and free of slag， improve the qualified rate of finished products, and reduce the follow-up process.

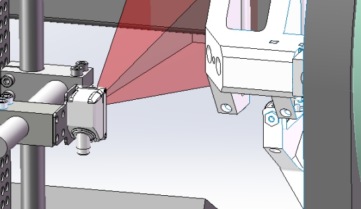

Weld Identification

Improve the qualified rate of finished products and ensure the stable quality of laser cutting.
