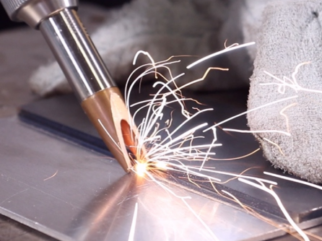

Handheld Laser Welding Machine W15 W20 W30

Handheld laser welder W15 W20 W30 integrated laser welding, laser cleaning, and laser cutting. Providing an integrated laser solution eliminates cumbersome operating procedures, reduces costs, and improves production efficiency. Thanks to the lightness of the handheld laser head, you can quickly solve the rust removal, welding, and cutting of metal pipes or metal sheets.

Highlights

Flexible, Efficient, High Utilization
Cost-effective and powerful

Download Data-sheet

Request A Quote

An overview of the benefits you gain from our laser welder.

We offer you the ideal solutions for the world of laser welding. Find out here how lasers can eliminate entire process steps while also increasing the range of parts you can produce.

Find Out More

Laser Machine Highlights

The handheld fiber laser welding machine has an integrated cabinet, fiber laser, cooling water circulation system, laser control system, and handheld welding head. Hand-held welding machine equipped with wire feeder accelerates more significant assembly gaps and errors and improves work efficiency and weld strength.

stainless steel
carbon steel
aluminum
brass
copper
alloy steel
galvanized steel

automotive sheet metal
3D curved metal parts
shaped tubes and parts
internal high-pressure tubes
thermoformed tubes
household appliances
bathrooms

View Hand Held Laser Welder

Intergrated laser welding, cleaning and cutting

Models	W15	W20 / W30
Laser power	1500W	2000W / 3000W
Laser mode	Continuous\Pulse
Laser wavelength	1064NM
Beam quality	M2<1.2	M2<1.5
Laser swing range	0-5mm
Cooling system	Customized industrial-grade dual-temperature dual-control chiller
Welding thickness	Max 3mm	Max 5mm
Welding seam requiremets	<0.2mm
Welding speed	0~120mm/s

CHECK OUT THE LATEST

Industries & Applications

We have you covered whether for structure material, auto parts, medical equipment, hardware, outdoor appliances, stainless steel, carbon steel, galvanized steel, brass, or aluminum.
