Heavy-Duty and Large-Format Fiber Laser Cutting: 5 Case Insights from Industrial Fabricators

Heavy-Duty and Large-Format Fiber Laser Cutting: 5 Case Insights from Industrial Fabricators

When working with heavy structural steel sections and architectural tubing, traditional cutting methods require manual layout, mechanical cutting, and subsequent grinding to prepare weld joints.

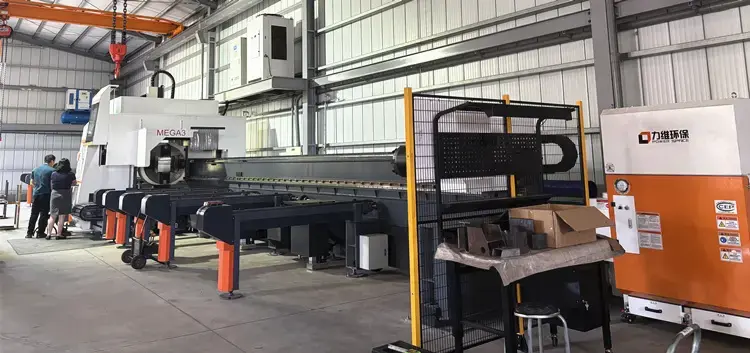

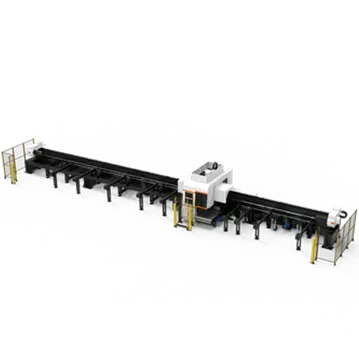

1. Machine Model: Mega3-3D Heavy-Duty Tube Laser Cutting Machine

Target Material: Structural tubing, heavy profiles, and complex beam joints.

Key Manufacturing Advantage: The Mega3-3D features multi-axis 3D cutting capabilities and high-precision 3D beveling. By cutting weld-ready bevel angles directly on the pipe end in a single pass, it eliminates labor-intensive manual grinding and drastically improves weld fit-up accuracy.

2. Large-Diameter & Heavy-Wall Pipe Processing: L41

Handling heavy industrial piping presents unique challenges, particularly regarding weight capacity, tube sagging, and chuck clamping stability.

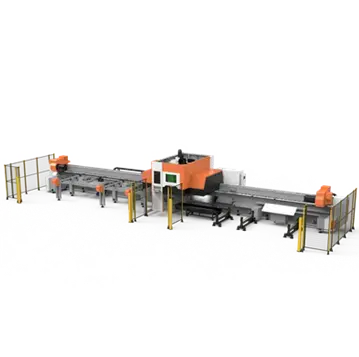

Machine Model: L41 Large Diameter Tube Laser Cutting Machine (Customized)

Target Material: Heavy-duty industrial piping and infrastructure-grade steel pipes.

Key Manufacturing Advantage: Built with a high-rigidity heavy-duty chuck system and robust supporting rollers, the L41 processes extra-large diameter and thick-walled pipes without vibration or material distortion. It maintains precise rotation and cutting accuracy over long pipe lengths.

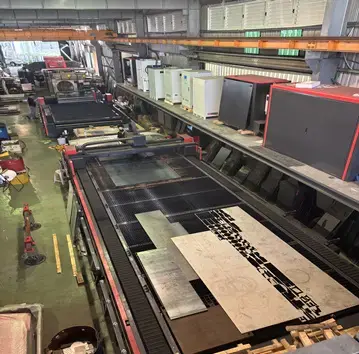

3. Oversized Plate & Heavy Sheet Metal Fabrication: E8 & E6

For agricultural machinery, crane manufacturing, and structural steel components, handling oversized steel plates often creates severe material handling friction.

Machine Model: E8 & E6 Large Format Fiber Laser Cutting Machines

Target Material: Massive flatbed sheet metal and thick carbon steel/stainless steel plates.

Key Manufacturing Advantage: Featuring extra-large cutting tables, the E8 and E6 series allow fabricators to load full-size heavy plates in a single setup. This design maximizes nesting efficiency, reduces drop-off waste, and minimizes the need for frequent loading/unloading cycles.

4. Rapid Throughput for Precision Job Shops: X3

In high-mix, high-volume sheet metal processing, maintaining short lead times requires excellent dynamic acceleration and high cutting stability.

Machine Model: X3 High-Efficiency Metal Sheet Laser Cutting Machine

Target Material: Standard to thick metal sheet precision components.

Key Manufacturing Advantage: Designed for fast piercing and high-speed cornering, the X3 delivers maximum dynamic response. It enables job shops to handle daily high-volume production schedules with low operational costs per unit.
